Astm 80 Standard Proof Coil Chain (G30) 1/8"-1" Suppliers

Home / Products / Mild steel link chain / Astm80 standard link chain / Astm 80 Standard Proof Coil Chain (G30) 1/8"-1"
  • Astm 80 Standard Proof Coil Chain (G30) 1/8

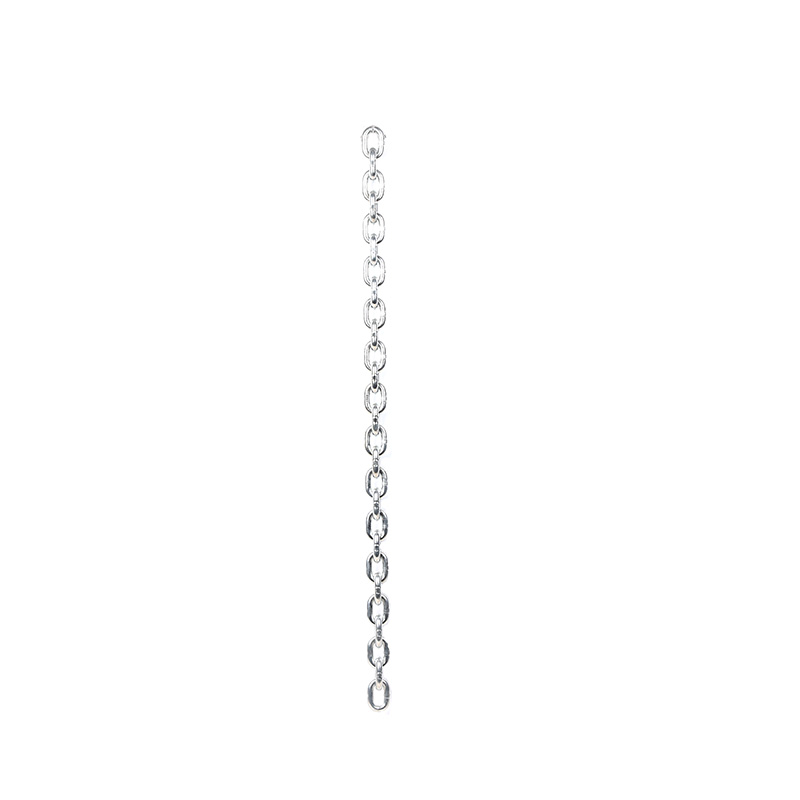

Astm 80 Standard Proof Coil Chain (G30) 1/8"-1"

  • Astm 80 Standard Proof Coil Chain (G30) 1/8

Advantage:

RELATED PRODHETS:

Nominal Size Breaking Load (min) Weight per 100' Inside Length(max.) Inside Width (min)
inch mm kN lbs kg lbs inch mm inch mm
 1/8 4.0 7.2 1,600  0.94 23.9 0.25 6.4
  3/16 5.5 14.4 3,200  0.98 24.8 0.30 7.7
 1/4 7.0 23.2 5,200  1.24 31.5 0.38 9.8
  5/16 8.0 33.8 7,600  1.29 32.8 0.44 11.2
 3/8 10.0 47.2 10,600  1.38 35.0 0.55 14.0
  7/16 11.9 65.8 14,800  1.64 41.5 0.65 16.6
 1/2 13.0 80.0 18,000  1.79 45.5 0.72 18.2
 5/8 16.0 122.8 27,600  2.20 56.0 0.79 20.0
 3/4 20.0 188.6 42,400  2.78 70.0 0.98 25.0
 7/8 22.0 228.2 51,200  3.03 77.0 1.08 27.5
1 26.0 318.2 71,600  3.58 90.9 1.25 31.7

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM Astm 80 Standard Proof Coil Chain (G30) 1/8"-1"

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale Astm 80 Standard Proof Coil Chain (G30) 1/8"-1".
