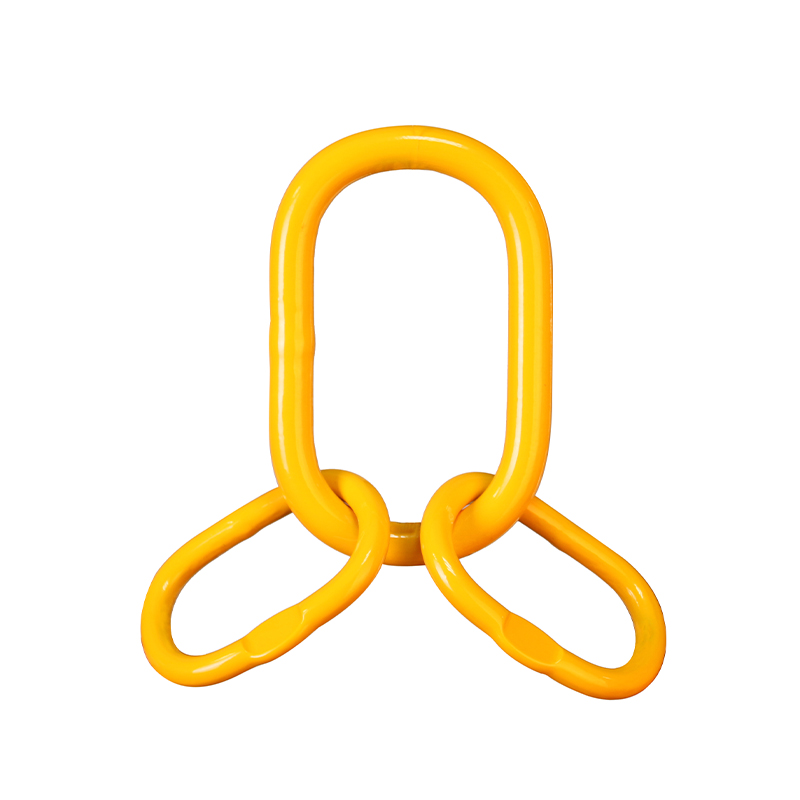

Grade 80 u.s. type master link assembly

Grade 80 U.S. Type Master Link Assembly is a high-strength, high-reliability chain assembly widely used in various heavy machinery and engineering fields. It is made of high-quality alloy steel material, precision processed and heat treated, and has excellent load-bearing capacity and wear resistance. This component has a unique design, compact structure, and easy installation. It can quickly and effectively connect the chain to ensure the stable and safe operation of the entire chain system.
  • Grade 80 u.s. type master link assembly
  • Grade 80 u.s. type master link assembly

Advantage:

RELATED PRODHETS:

Chain Size WLL(T) Main Dimensions (mm) Weight
inch 3or4leg(0-45°) A B D a b d kg
 1/4 3.15 140 70 20 85 40 14 1.55
  5/16 4.25
  5/16 4.25 160 95 22 85 40 14 2.18
 3/8 6.7
 3/8 6.7 178 89 25 100 60 18 3.29
 1/2 11.2 220 110 32 100 60 22 7.18
 5/8 17
 5/8 17 267 135 38 180 100 30 12.91
 3/4 23.6
 3/4 23.6 305 152 45 180 100 32 21.25
 7/8 31.5
 7/8 31.5 356 178 50 180 100 38 30.34
1  45 406 203 64 355 178 51 64.4
1-1/4 67 406 241 70 406 203 57 89

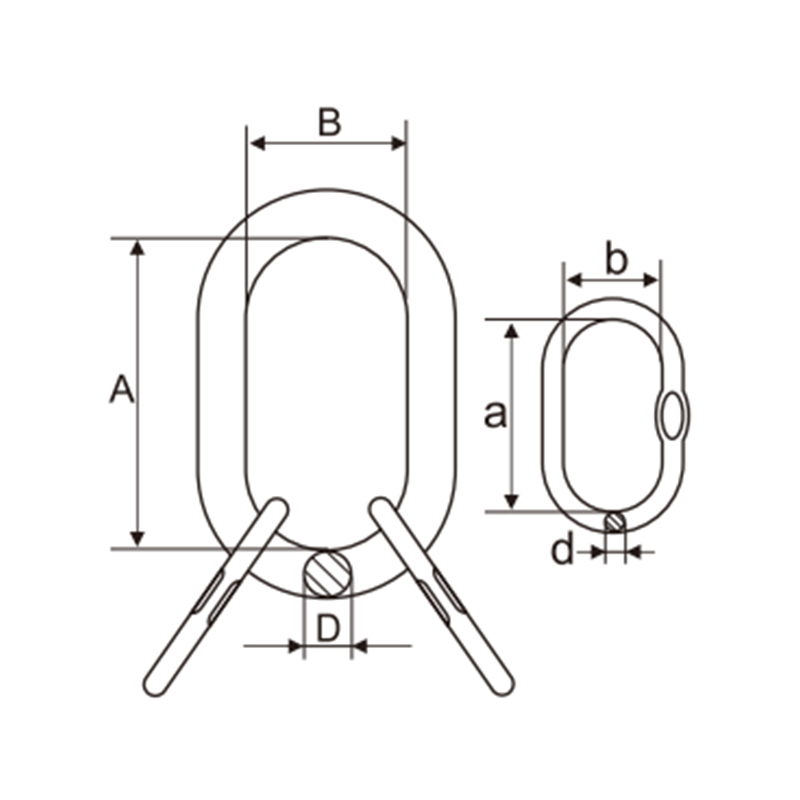

DIMENSION Drawing:

Product Description:

The Grade 80 U.S. Type Master Link Assembly is a carefully engineered and engineered chain assembly designed to withstand high loads and harsh environments. This product is made of high-quality alloy steel and uses advanced heat treatment and precision processing technology to ensure its excellent mechanical properties and durability.
The distinguishing features of this Master Link Assembly are its high strength and excellent load-bearing capacity. In key fields such as heavy machinery, hoisting equipment, mining operations, and engineering construction, it can ensure the stable operation of the chain system and avoid safety accidents caused by chain breakage or weak connections.
In addition, it has a unique design, compact structure, and easy and quick installation. The unique connection mechanism allows the chain to be easily connected and disassembled, improving work efficiency. At the same time, the surface treatment process of this product has also been carefully considered, which can effectively resist corrosion and wear and extend the service life.
Most importantly, Grade 80 U.S. Type Master Link Assembly fully complies with relevant U.S. standards and specifications, has excellent quality, and has undergone rigorous testing and inspection to ensure its stable and reliable performance. It is a trustworthy choice for both professional engineers and ordinary users.

LEAVE A MESSAGE:

OEM Grade 80 u.s. type master link assembly

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale Grade 80 u.s. type master link assembly.
