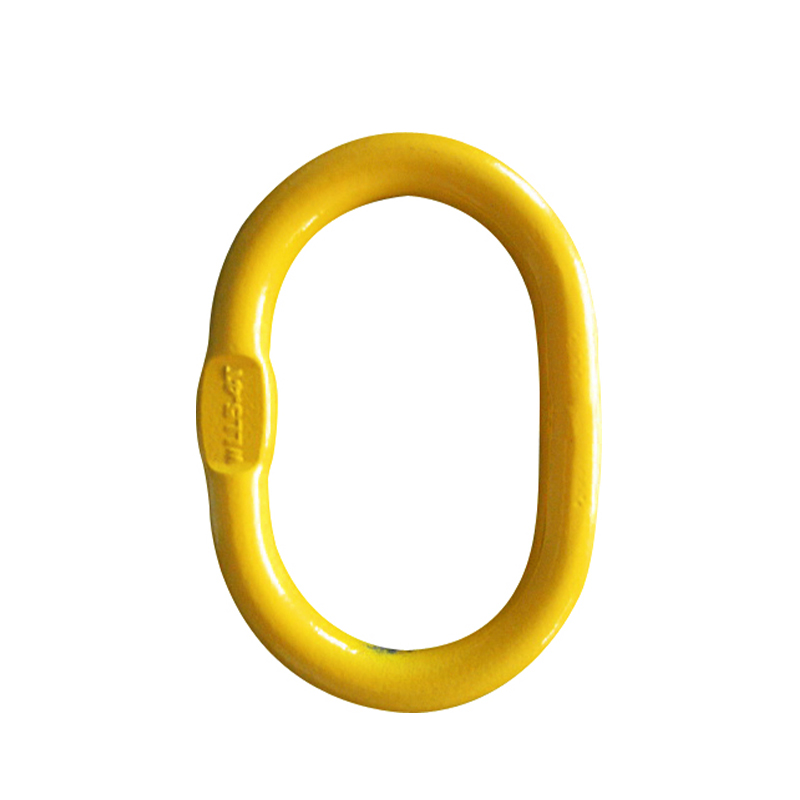

Grade 80 u.s. type welded master link

Grade 80 U.S. Type Welded Master Link is a high-strength welded master link widely used in a variety of heavy industrial equipment and machinery. It is made of high-quality alloy steel and processed by precision welding technology, with extremely high load-bearing capacity and wear resistance. The chain link has reasonable design and solid structure, and can maintain long-term stable performance in harsh working environments. At the same time, its unique welding process and surface treatment technology make the surface of the chain link smooth, difficult to rust and corrode, and extend the service life.
  • Grade 80 u.s. type welded master link
  • Grade 80 u.s. type welded master link

Advantage:

RELATED PRODHETS:

Chain Size WLL(T) Main Dimensions (mm) Weight
inch 1leg 2legs(0-45°) ROPE A B D kg
 1/4 1.12 1.6 1.6 100 60 12 0.27
  9/32 1.5 /
  9/32 1.5 2.12 2.5 100 60 14 0.38
  5/16 2 /
  5/16 2 2.8 4 160 90 18 0.85
 3/8 3.15 /
 3/8 3.15 4.25 6.5 160 90 20 1.2
 1/2 5.3 /
 1/2 5.3 7.5 8 180 100 22 1.63
 5/8 8 /
 5/8 8 11.2 11.5 180 100 25 2.13
19mm 11.2 /
 3/4 12.5 / 11.8 270 140 28 3.81
19mm 11.2 16 16 270 140 32 5.05
 7/8 15 /
 7/8 15 21.2 24 285 155 36 6.83
1     21.2 /
28mm 25 / 25 300 160 40 8.9
1     21.2 30 31.5 340 180 45 12.8
1-1/4 31.5 /
1-1/4 31.5 45 45 390 215 51 17.3

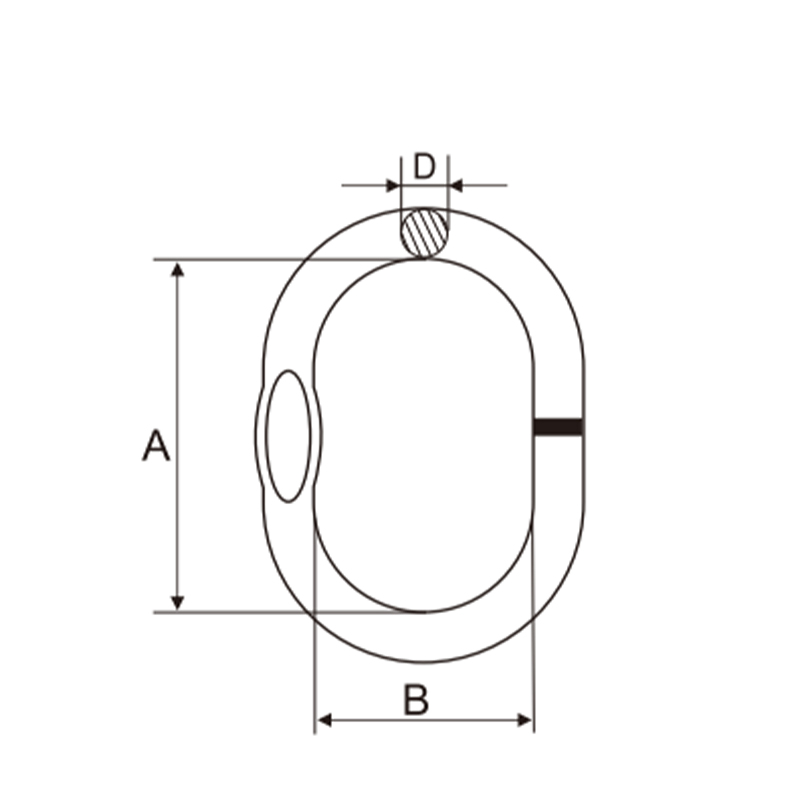

DIMENSION Drawing:

Product Description:

Grade 80 U.S. Type Welded Master Link is a high-quality, high-strength welded master link designed for a variety of heavy-duty industrial applications. It uses high-quality alloy steel as raw materials and is carefully crafted through precise welding processes, thus ensuring its excellent load-bearing capacity and wear resistance.
This chain ring is designed with practicality and safety in mind. Its structure is strong and reasonable, and it can maintain stable performance even in extreme working environments. In addition, the chain links have undergone fine surface treatment and are extremely smooth, effectively preventing rust and corrosion from occurring, thereby greatly extending the service life.
Grade 80 U.S. Type Welded Master Link has won the favor of many users with its excellent quality and reliability. Whether in hoisting operations, mining, or in engineering fields such as construction and bridges, it has demonstrated excellent performance and provided strong support for various heavy equipment and machinery.
