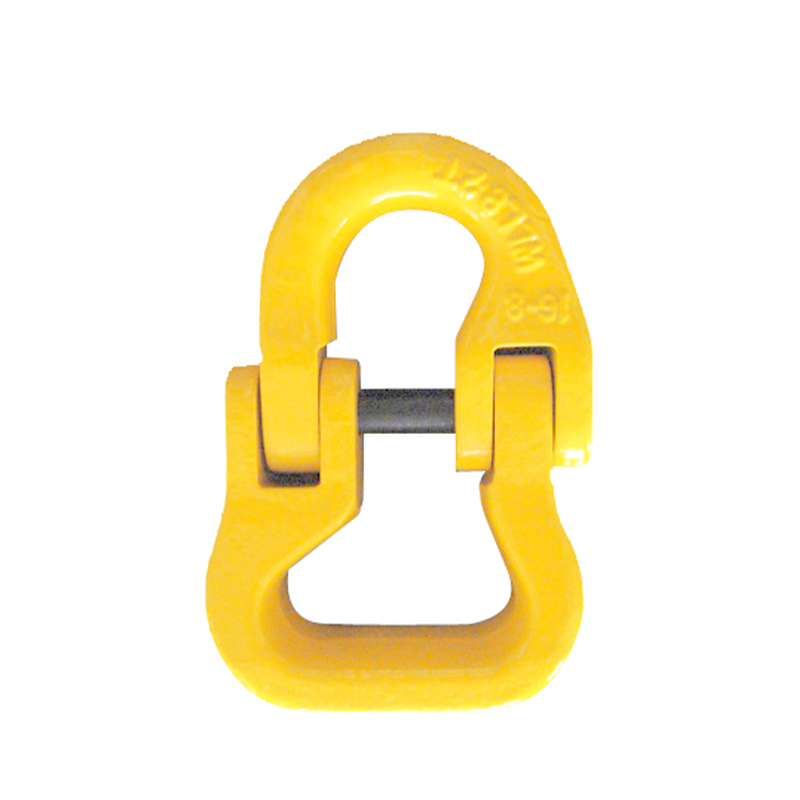

Grade 80 webbing connecting link

Grade 80 Webbing Connecting Link is a high-strength, high-reliability connector widely used in various outdoor equipment, safety protection and hoisting systems. It is made of high-quality materials, precision processed and rigorously tested, with excellent load-bearing capacity and stability. This kind of connector has the characteristics of compact structure and easy installation. It can quickly and effectively connect various meshes, ropes and other components to ensure the stability and safety of the entire system. Whether in wild camping, rock climbing adventures or industrial lifting, the Grade 80 Webbing Connecting Link can play an important role.
  • Grade 80 webbing connecting link
  • Grade 80 webbing connecting link

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton A B K W G D kg
6 1.12 15 60 56 40 18 7 0.23
7+8 2 20 61.5 63.7 40 24 9.5 0.3
10 3.15 24 66 83 39 30.5 11 0.68
13 5.3 28 88 93.7 55 36.8 16.5 1.47
16 8 34.5 108 120 65.5 45.2 19.8 2.3
20 12.5 41 129 138 80 51.8 23 3.3
22 15 50 191 180 126 70 26 6.89
26 21.2 58 228.4 209.5 152 86 30 10.62
32 31.5 72.5 252 279 160 91 37 18.92

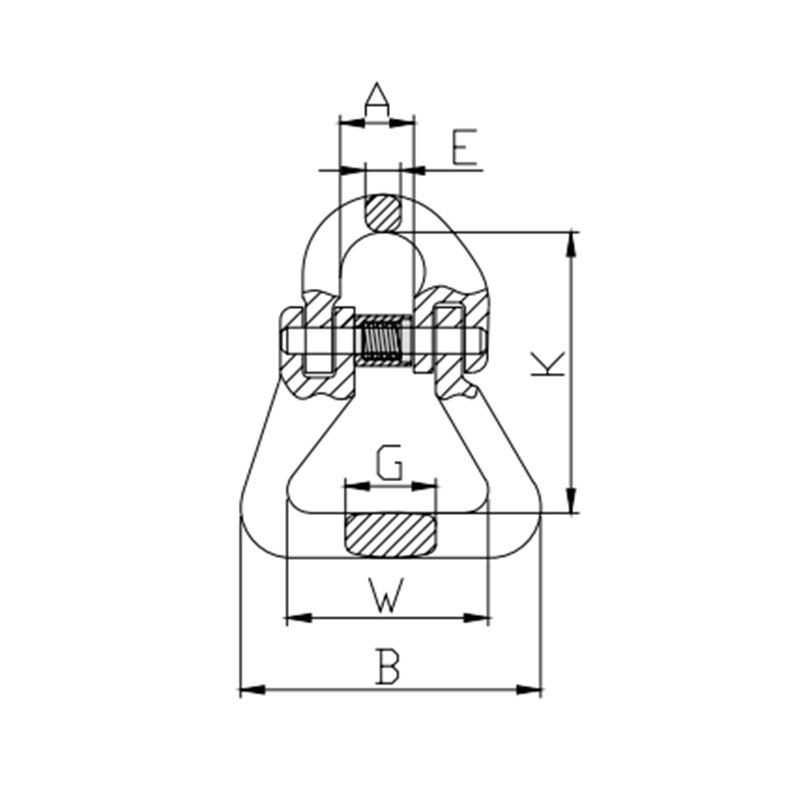

DIMENSION Drawing:

Product Description:

Grade 80 Webbing Connecting Link is a high-performance connector that is widely used in various industrial fields that require high-strength, high-reliability connections. This product is favored for its excellent load-bearing capacity and stable performance, and can meet a variety of harsh working environments and application needs.

1. Product features
High strength: Grade 80 Webbing Connecting Link is made of high-quality materials, has extremely high strength and durability, and can withstand large tension and pressure, ensuring the stability and safety of the connection.
Precise dimensions: The dimensions of the product are precisely designed and manufactured, and the dimensions of each connector meet strict standards to ensure precise fit and installation with other components.
Lightweight design: On the premise of ensuring strength and stability, the product adopts a lightweight design, which reduces the overall weight and is easy to carry and install.
Easy to install: The design of the connector is simple and clear, and the installation process is simple and fast, reducing installation time and cost.

2. Product parameters
The main parameters of Grade 80 Webbing Connecting Link include Chain Size, WLL (Working Load Limit), Main Dimensions and Weight.

Chain Size: Indicates the chain size suitable for the connector. Different sizes are suitable for different application scenarios and needs.
WLL: refers to the maximum load that a connector can withstand under working conditions. It is an important indicator for evaluating the performance of a connector.
Main Dimensions: Including A, B, K, W, G, D and other dimensional parameters. These parameters determine the shape and size of the connector and ensure its compatibility with other components.
Weight: Indicates the weight of the connection, which helps users understand the transportation and installation costs of the product.

3. Applicable fields
Grade 80 Webbing Connecting Link is widely used in various industries and fields that require high-strength connections, such as marine engineering, lifting equipment, hoisting operations, bridge construction, etc. In these fields, the performance and stability of the connectors are directly related to the safety and reliability of the entire system, so it is crucial to choose high-quality products.
