  • Nacm96 Standard G30 Welded Proof Coil Chain

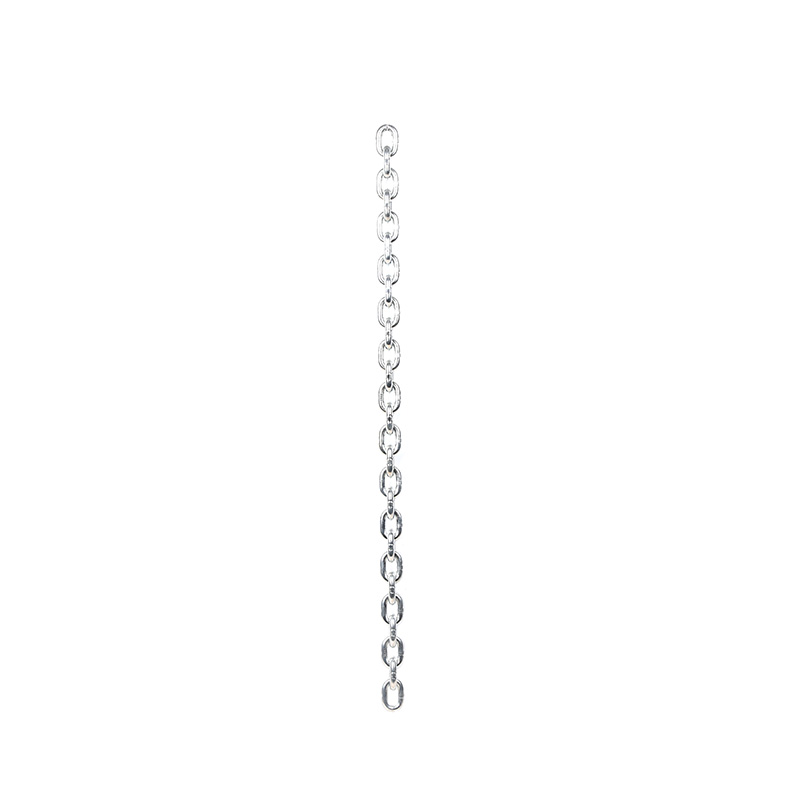

Nacm96 Standard G30 Welded Proof Coil Chain

  • Nacm96 Standard G30 Welded Proof Coil Chain

Advantage:

RELATED PRODHETS:

Nominal Size Breaking Load (min) Weight per 100' Inside Length(max.) Inside Width (min)
inch mm kN lbs kg lbs inch mm inch mm
 1/8 4.0 7.1 1,600  9.0 19.8 0.94 23.9 0.25 6.4
  3/16 5.5 14.3 3,200  18.3 40.3 0.98 24.8 0.30 7.7
 1/4 7.0 23.1 5,200  30.0 66.1 1.24 31.5 0.38 9.8
  5/16 8.0 30.2 6,800  39.0 86.0 1.29 32.8 0.44 11.2
 3/8 10.0 47.1 10,600  64.5 142.0 1.38 35.0 0.55 14.0
 1/2 13.0 79.6 17,900  110.0 242.0 1.79 45.5 0.72 18.2
 5/8 16.0 120.6 27,200  162.0 357.0 2.20 56.0 0.79 20.0
 3/4 20.0 188.5 42,400  254.0 560.0 2.76 70.0 0.98 25.0
 7/8 22.0 228.1 51,200  306.0 675.0 3.03 77.0 1.03 27.5
1 26.0 318.2 71,600  419.0 924.0 3.58 90.9 1.25 31.7

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM Nacm96 Standard G30 Welded Proof Coil Chain

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale Nacm96 Standard G30 Welded Proof Coil Chain.
