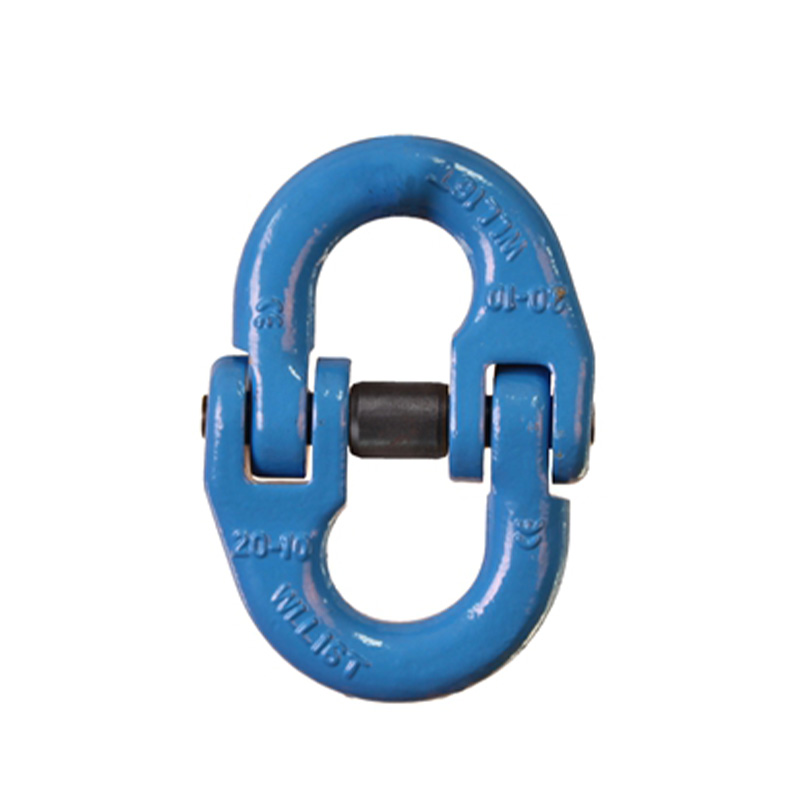

G100 european type connecting link

G100 European Type Connecting Link is a standard connector widely used in various mechanical and engineering structures. Its unique design adopts European standards, ensuring a high degree of compatibility and interchangeability. G100 represents its high load-bearing capacity and excellent durability, which can meet the needs of use in various harsh environments. The surface treatment of the connecting ring is smooth, and the installation is easy and quick, which greatly improves work efficiency. Whether it is bridge construction, machine manufacturing or other fields.

  • G100 european type connecting link
  • G100 european type connecting link

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton H A K L kg
6 1.4 7.6 14 44.5 60 0.1
8 2.5 10 18.5 61.5 84.5 0.22
10 4 12.6 23 72 97.2 0.45
13 6.7 16.8 27.5 89 127 1.15
16 10 21 33.5 103 145 1.75
20 16 24.5 42 116 175 2.7
22 19 27 48 135 193 4.02
26 26.5 32 61 164 228 5.1
32 39.3 40 80 194 274 8.5

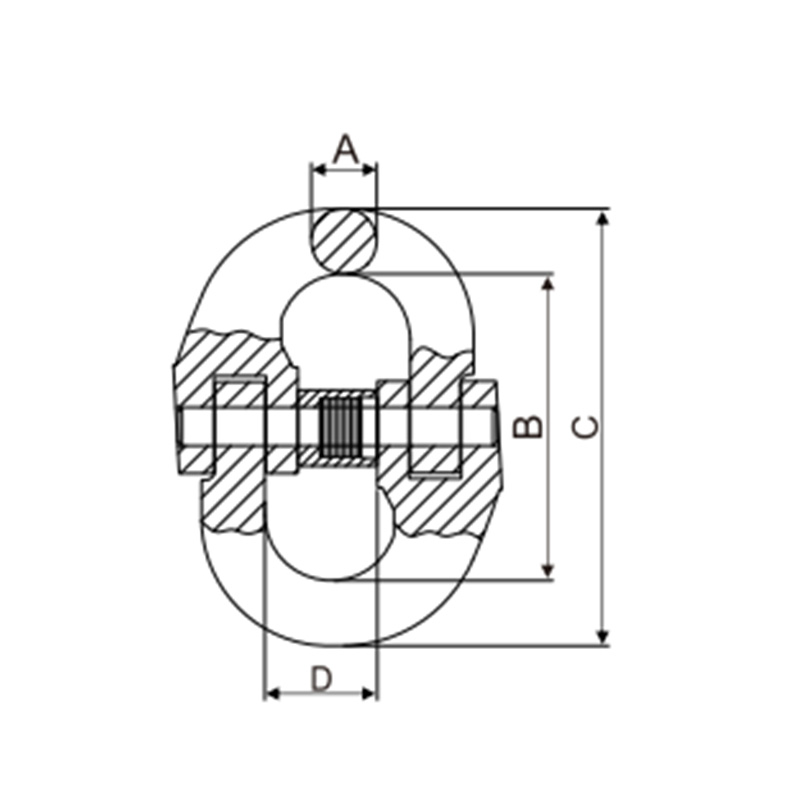

DIMENSION Drawing:

Product Description:

G100 European Type Connecting Link is a high quality, high strength connecting link widely used in a variety of lifting, towing and tensioning systems.

Features:

High strength: The G100 connecting link is made of high-quality alloy steel and undergoes a strict heat treatment process to ensure it has excellent tensile strength and fatigue resistance.
High reliability: The design of this connecting link follows European standards and undergoes strict quality control and testing to ensure stable performance even in harsh environments.
Lightweight and durable: While meeting the strength requirements, the G100 connecting chain ring is also lightweight, making it easy to transport and install. At the same time, its surface has been specially treated to have good corrosion resistance and extend its service life.
Complete specifications: Product specifications range from 6mm to 32mm to meet various lifting and towing needs.

The main parameters:
Chain Size: refers to the maximum outer diameter of the chain link, ranging from 6mm to 32mm.
WLL (Working Load Limit): refers to the maximum load that the chain link can bear under normal working conditions, ranging from 1.4 tons to 39.3 tons.
Main Dimensions:
H: Link height
A: Link width
K: inner diameter of chain ring
L: full length of chain link
Weight: The net weight of the chain link, ranging from 0.1kg to 8.5kg.

Should range:
G100 European Type Connecting Link is suitable for various occasions that require high-strength and high-reliability connection links, including but not limited to:

Hoisting operations: Used in ports, docks, construction sites and other places to hoist heavy objects such as cargo and equipment.
Traction system: used in mining, tunnel construction, bridge construction and other fields to tow and move heavy objects.
Tensioning system: In the fields of ships, machinery, aviation and other fields, it is used to tighten and fix various equipment and structures.

Please note that when using G100 connecting link, you should ensure that the load it bears does not exceed its working load limit, and follow relevant safety operating procedures and standards to ensure the safety of people and equipment.
