Grade 100 G100 Lifting Master Link Ring With Flat Suppliers

Home / Products / Lifting chain / G100 chain fittings / Grade 100 G100 Lifting Master Link Ring With Flat
  • Grade 100 G100 Lifting Master Link Ring With Flat
  • Grade 100 G100 Lifting Master Link Ring With Flat

Grade 100 G100 Lifting Master Link Ring With Flat

  • Grade 100 G100 Lifting Master Link Ring With Flat
  • Grade 100 G100 Lifting Master Link Ring With Flat

Advantage:

RELATED PRODHETS:

Chain Size(mm) WLL Main Dimensions (mm) Weight
1 leg 2 legs ton A B D kg
5 5 1.4 80 50 10 0.14
6+7 6 2.3 110 60 13 0.34
8 7 3.5 110 60 16 0.53
10 8 5 135 75 18 0.86
13 10 7.6 160 90 23 1.6
16 13 10 180 100 27 2.46
19 16 14 200 110 33 4.14
22 19 25.1 260 140 36 6.22
26 22 30.8 340 180 45 12.85
32 26 40 350 190 50 16.22
/ 32 60 400 200 60 27.01
/ / 81.5 460 250 70 45

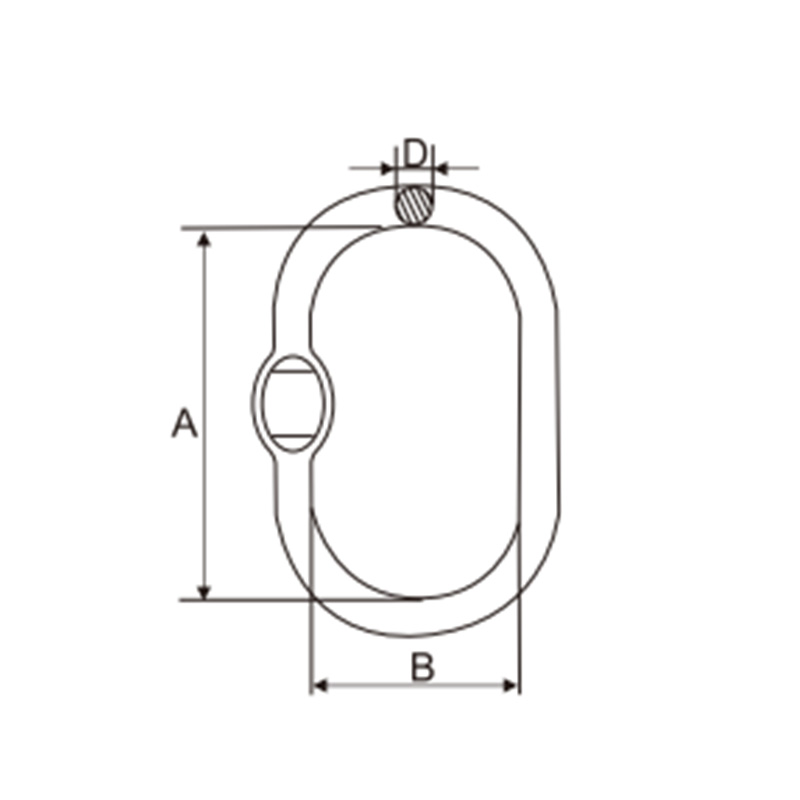

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM Grade 100 G100 Lifting Master Link Ring With Flat

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale Grade 100 G100 Lifting Master Link Ring With Flat.
