6-16MM G100 Omega Link For Chain Slings Suppliers

Home / Products / Lifting chain / G100 chain fittings / 6-16MM G100 Omega Link For Chain Slings
  • 6-16MM G100 Omega Link For Chain Slings
  • 6-16MM G100 Omega Link For Chain Slings

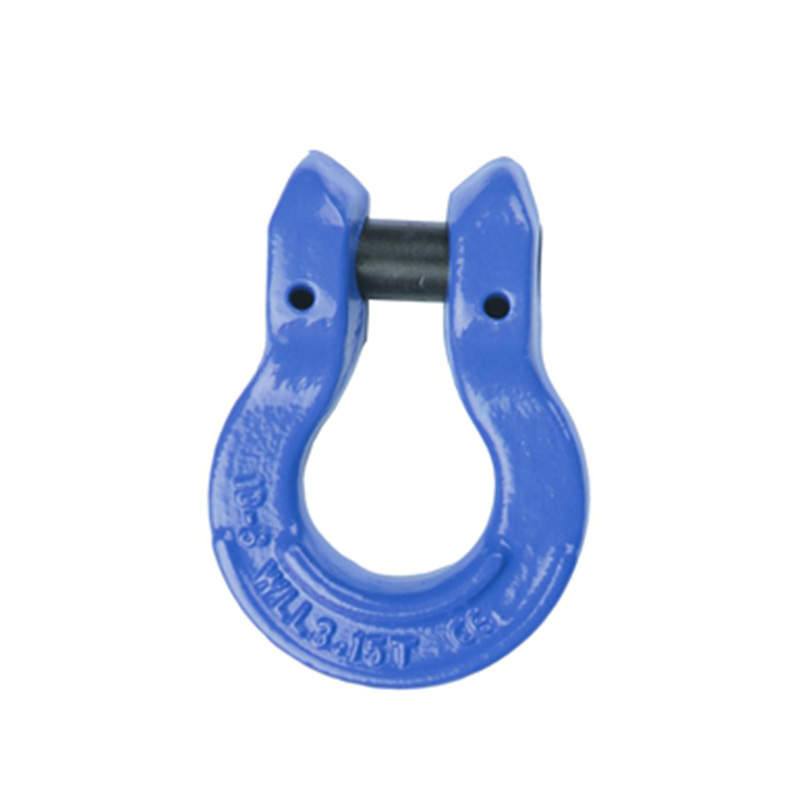

6-16MM G100 Omega Link For Chain Slings

  • 6-16MM G100 Omega Link For Chain Slings
  • 6-16MM G100 Omega Link For Chain Slings

Advantage:

RELATED PRODHETS:

Chain Size WLL Main Dimensions (mm) Weight
mm ton A B E M L kg
6 1.4 8.5 34 20 44 55 0.12
8 2.5 10.5 46.5 24 60 73.5 0.27
10 4 12.5 52 31 70 90 0.44
13 6.7 16 65 38.5 90 109 0.89
16 10 19 92.5 51 112 141.5 1.69

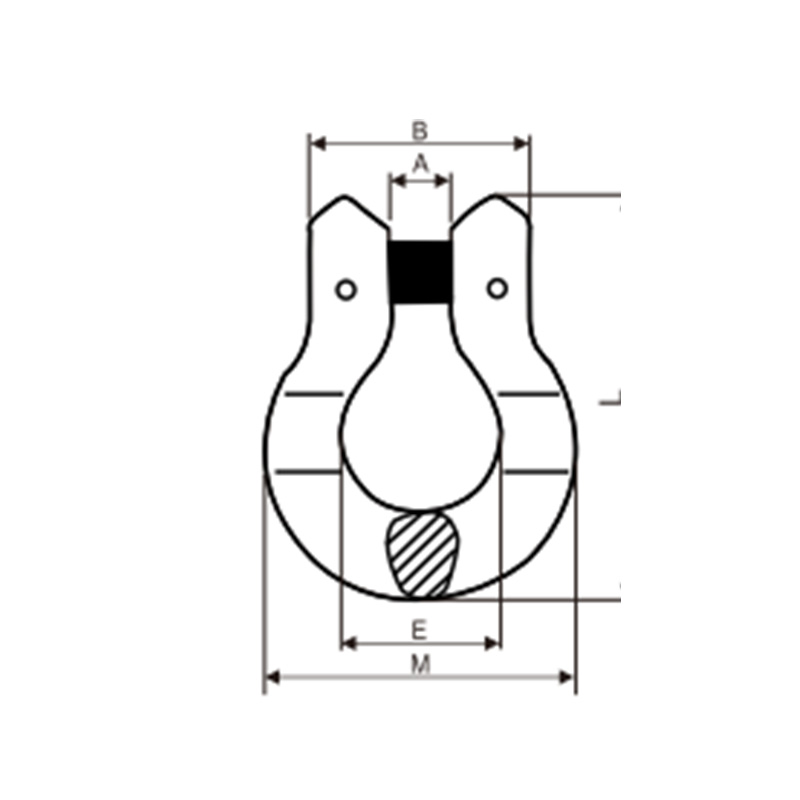

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM 6-16MM G100 Omega Link For Chain Slings

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale 6-16MM G100 Omega Link For Chain Slings.
