G100 u.s. type master link assembly Suppliers

Home / Products / Lifting chain / G100 chain fittings / G100 u.s. type master link assembly
  • G100 u.s. type master link assembly
  • G100 u.s. type master link assembly

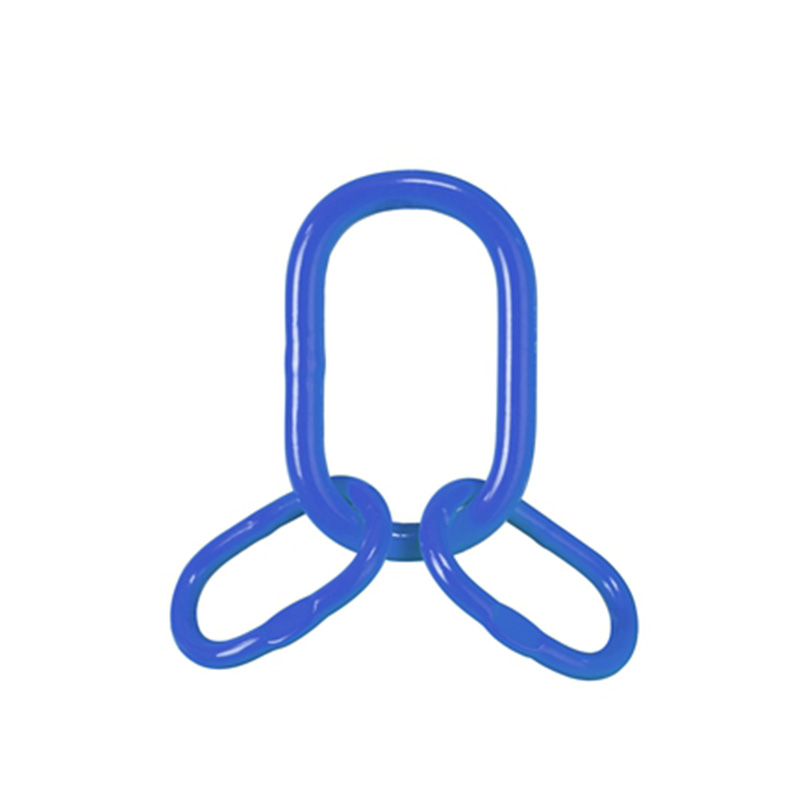

G100 u.s. type master link assembly

  • G100 u.s. type master link assembly
  • G100 u.s. type master link assembly

Advantage:

RELATED PRODHETS:

Chain Size WLL(T) Main Dimensions (mm) Weight
inch 3or4leg(0-45°) A B D a b d kg
 1/4 4.2 140 70 20 85 40 14 1.55
  5/16 5.3 160 95 22 85 40 14 2.18
 3/8 8 178 89 25 100 60 18 3.29
 1/2 14 220 110 32 100 60 22 7.18
 5/8 21.2
 5/8 21.2 267 135 38 180 100 30 12.91
 3/4 30 305 152 45 180 100 32 21.25
 7/8 39.4 356 178 50 180 100 38 30.34
1     55.5 406 203 64 355 178 51 64.4
1-1/4 85 406 241 70 406 203 57 89

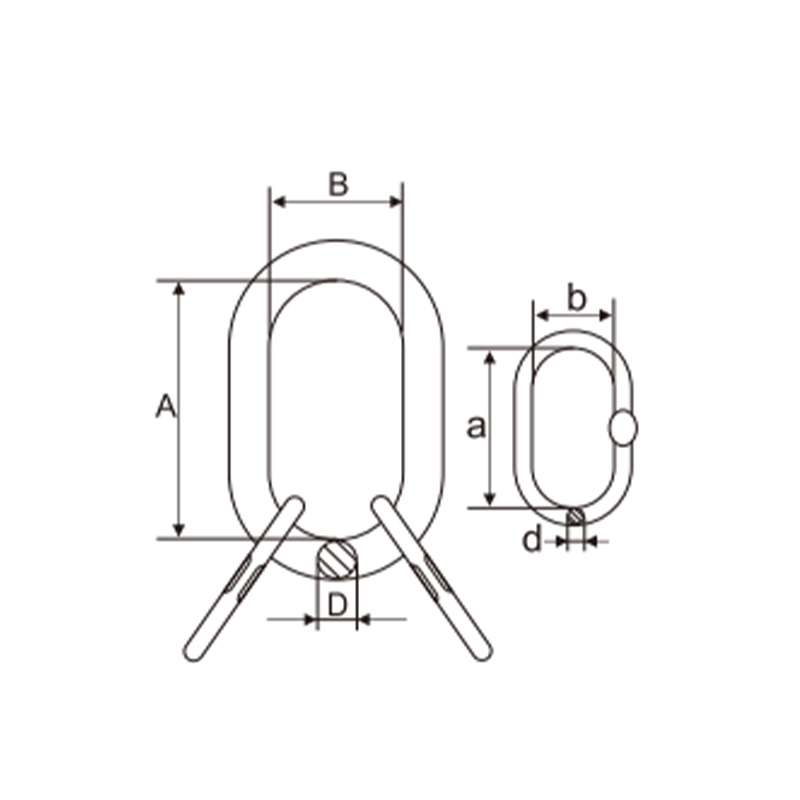

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM G100 u.s. type master link assembly

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale G100 u.s. type master link assembly.

checking out the production schedule on wall
  • News Center

    Provide you with relevant information about
    the industry.

GET STARTED TODAY

We Can Help You

We are G100 u.s. type master link assembly manufacturing company.
