G100 welded master link assembly with flat Suppliers

Home / Products / Lifting chain / G100 chain fittings / G100 welded master link assembly with flat
  • G100 welded master link assembly with flat
  • G100 welded master link assembly with flat

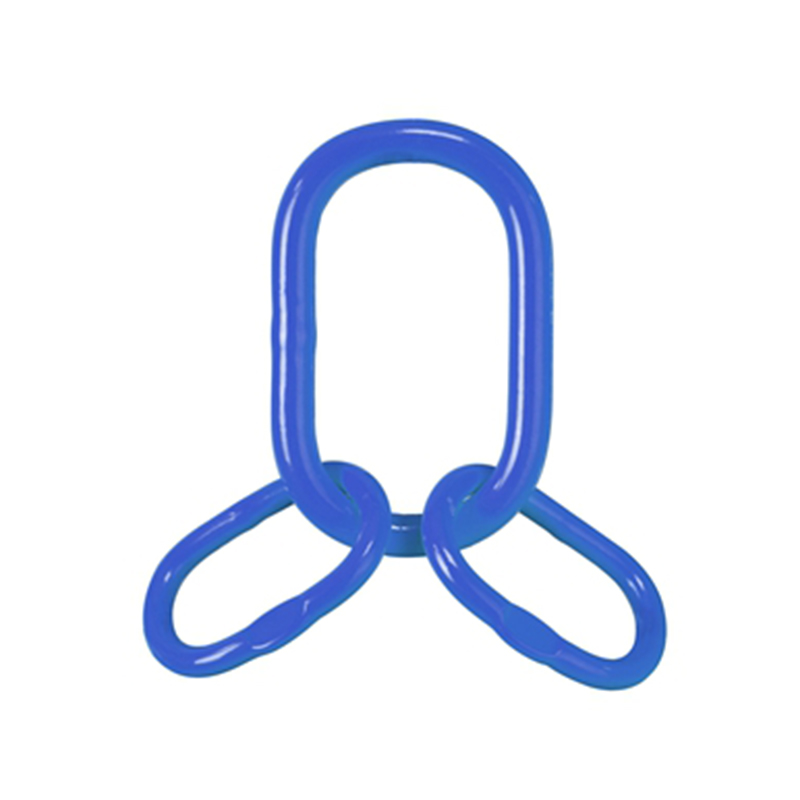

G100 welded master link assembly with flat

  • G100 welded master link assembly with flat
  • G100 welded master link assembly with flat

Advantage:

RELATED PRODHETS:

WLL B.L Main Dimensions (mm) Weight
ton ton A B D a b d kg
3.5 14 150 90 19 120 70 14 1.8
5 20 160 95 22 140 80 17 3
11.5 46 200 120 30 160 95 22 6.5
17 68 250 150 40 200 120 30 15
28 172 300 200 50 200 120 32 23

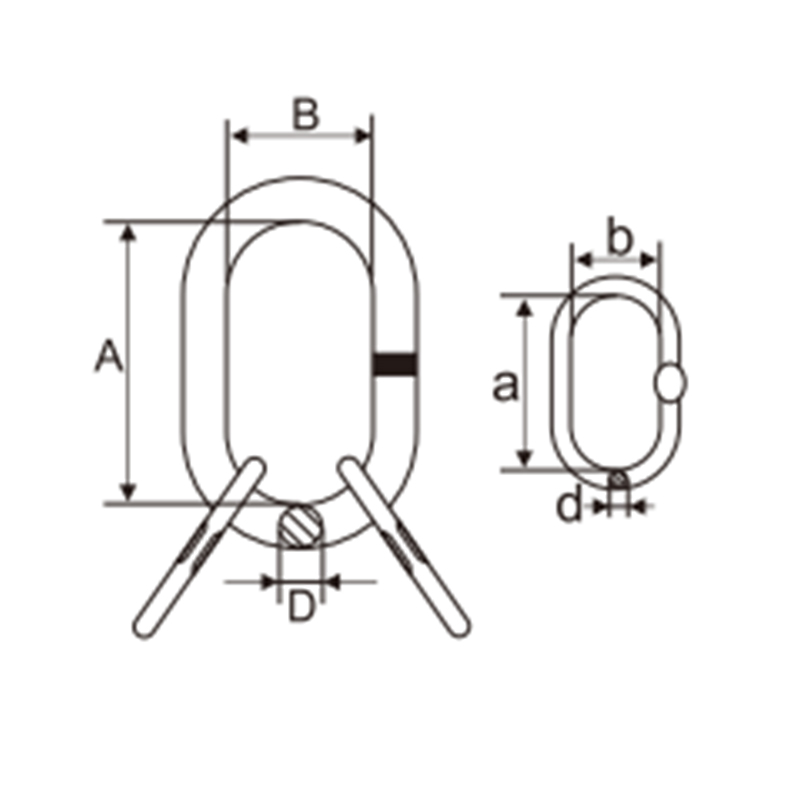

DIMENSION Drawing:

Product Description:

LEAVE A MESSAGE:

OEM G100 welded master link assembly with flat

Lijia Chain Co., Ltd specializes In The Production Of High-Strength Chains, Chain Rigging, And Lifting Chains. In order to further overcome the fierce market competition and further integrate with the international market, our company has introduced advanced technology and equipment, including 7 sets of high-strength chain special automatic braiding and welding machines; 3 sets of special chain intermediate frequency quenching equipment; 7 correction machines; Complete testing equipment such as tensile testing machine and hardness machine. Simply you can OEM and wholesale G100 welded master link assembly with flat.
